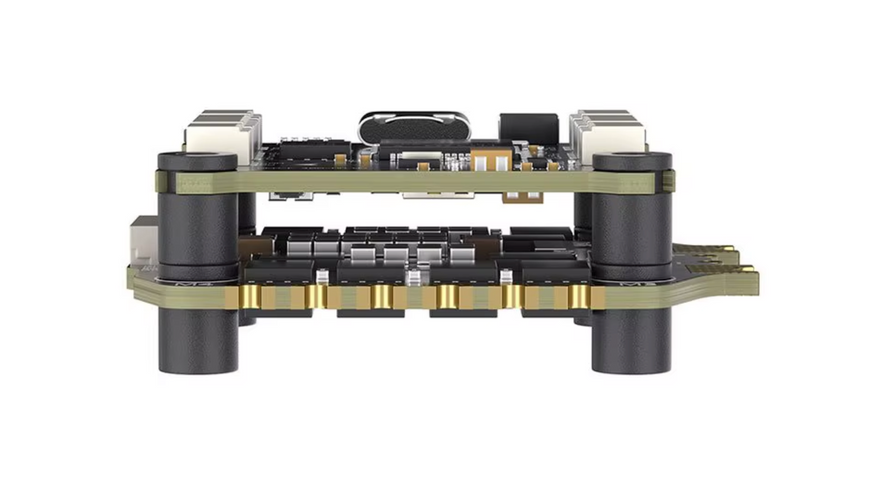

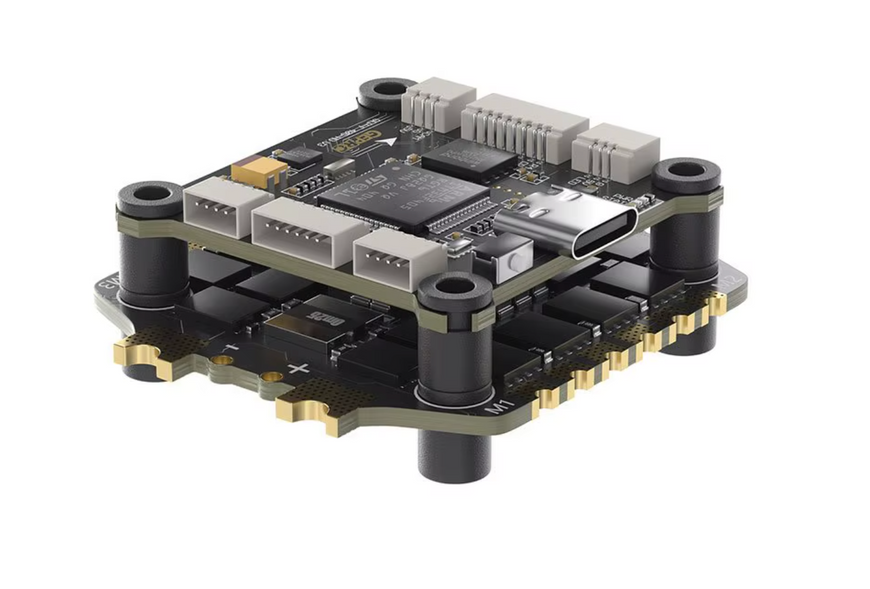

Комбо стек GEPRC TAKER F405 BLS 60A V2

GEPRC TAKER F405 BLS 60A V2 STACK

Features
Use mainstream STM32F405 chip
Equipped with the latest 42688-P gyroscope
16M black box storage
Integrated LC filter
Upgrade type-C USB interface
Directly plugged into the DJI Air Unit
With TAKER H60_BLS 60A 4IN1 ESC, the flying feel is silky
Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
12V@2.5A + 5V@3A dual independent BEC

Specifications

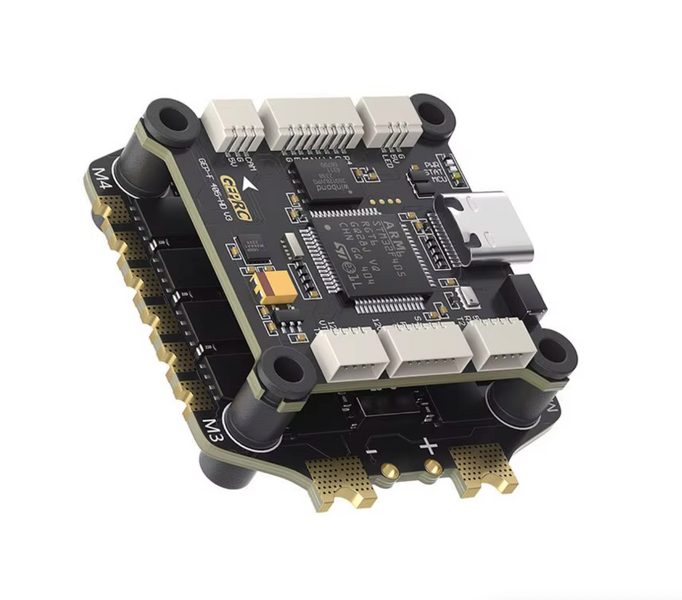

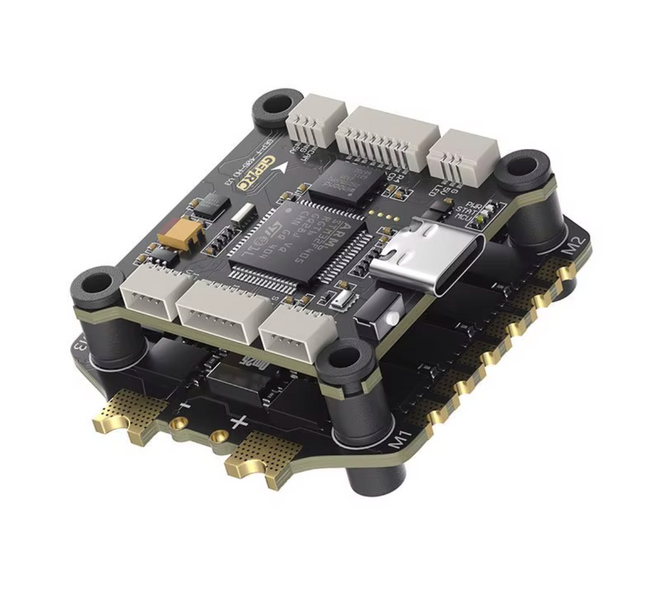

GEP-F405-HD V3 Flight Controller
MCU：STM32F405
IMU：ICM42688-P(SPI)
Air Unit Connection：Direct plugging into DJI Air Unit
Black Box：16M onboard
Barometer: BMP280
Motor outputs：M1-M6
USB Interface：Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,12V@2.5A dual BEC
Firmware Target：GEPRCF405
Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
Input Voltage：3-6S LiPo
UART：6 UARTs
Power Filter：Integrated LC filter
Weight：7.3g

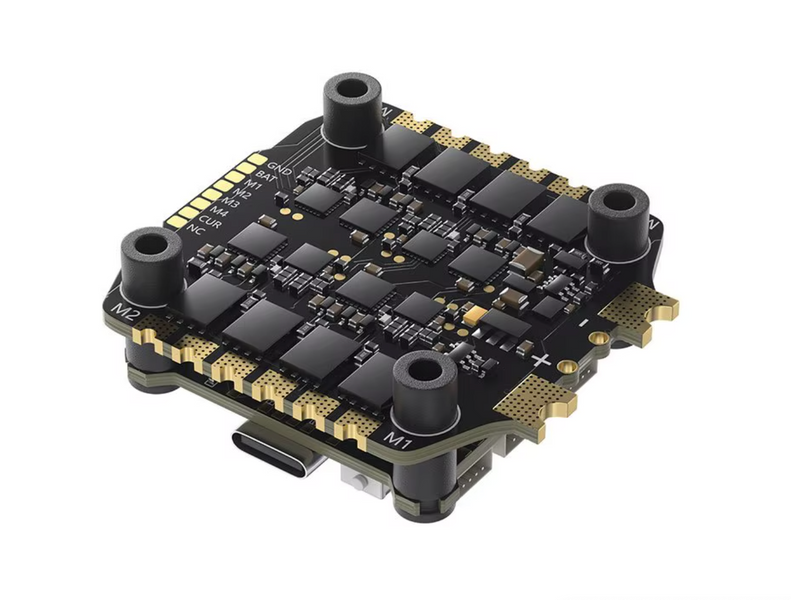

TAKER H60_BLS 60A 4IN1 ESC
Input Voltage: 3-6S Lipo
Ammeter: Support
Continue Current：60A
Burst Current：65A（5 second）
Support Protocol: Dshot 150/300/600
Size：42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 14.9g
Target: B_X_30
